New Haven Courthouse

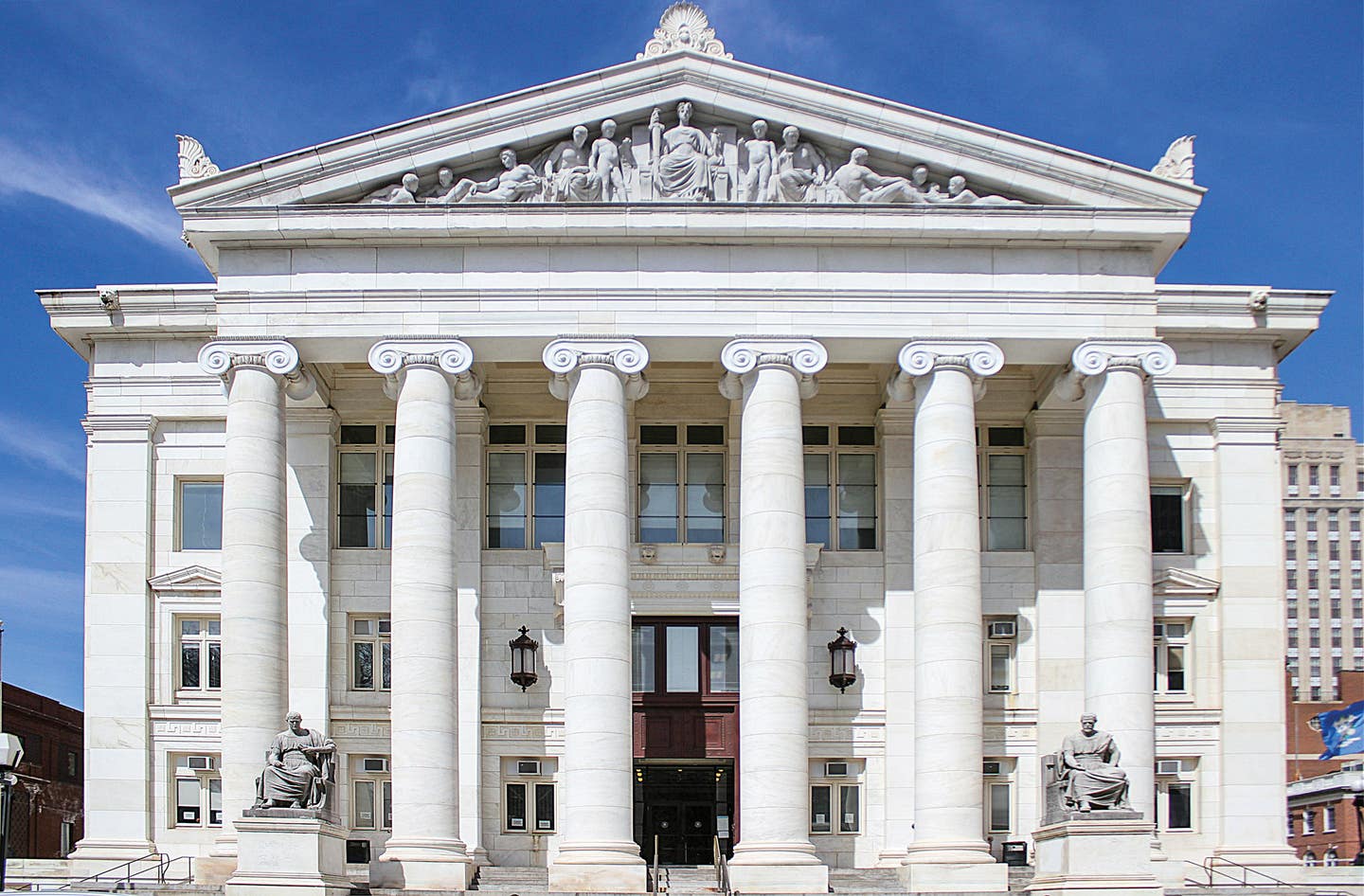

The New Haven County Courthouse is on the National Register of Historic Places.

Project New Haven Courthouse GA Exterior Restoration

Architect JCJ Architecture

Primary Contractor Kronenberger & Sons Restoration, Inc.

The New Haven County Courthouse (NHCC) is one of the few structures commissioned by the county to be part of the nation’s City Beautiful Movement. The original building was completed in 1914 and was the work of New Haven firm Allen and Williams. Modeled after St. George’s Hall in Liverpool, it is described as Neo-classical “infused Beaux-Arts principles.” Together with New Haven Green—completed in 1638—the building occupies the central square of the Puritan colonists’ nine-square settlement. NHCC is on the National Register of Historic Places and is part of the New Haven Green Historic District, a National Historic Landmark District.

 Before photos of marble column capital restoration, including a complex dutchman repair to the volutes.

Before photos of marble column capital restoration, including a complex dutchman repair to the volutes.

With this deep history always in mind, Hartford-based JCJ Architecture and Kronenberger & Sons Restoration of Middletown, Connecticut, brought the monumental structure back from a state of decrepitude. Decades of pollution, ill-executed alterations, and general neglect had contributed to its demise. “Too often, buildings of this level of craftsmanship fall into heavy deterioration because of the cost of upkeep and the special skill required to maintain them,” says Andrew S. Moore, representing Kronenberger & Sons.

Charged by the State of Connecticut with repairing the compromised envelope and heading off continued erosion of the 100-year-old building’s façade, the team—which included Hoffmann Architects, the State Department of Construction Services, and Building Conservation Associates—kicked off a two-year reconstruction plan in 2012. It was Phase One of a multi-phase project, and it addressed the Elm Street and Church Street elevations—the windows, skylights, roofing, stairs, doors, and masonry, as well as important architectural features and fixtures. “The work on this project was diverse,” Moore notes. “It ranged from demo, excavation, structural [repairs], and abatement to highly ornate metalwork, stonemasonry, plastering, and finishes.”

 During photos of marble column capital restoration.

During photos of marble column capital restoration.

The complexity of the project was compounded by the busy downtown location, high-level security constraints, and a requirement that courthouse operations be unhindered. “Staging the building, maintaining or redirecting egress, protecting sidewalks and roadways, delivering and removing materials, and performing work were all equally crucial to the safety and success of this project,” says Moore, adding that keeping noise to a minimum and providing front-door access when an entire front portico staircase is being deconstructed is no small feat.

 After photos of marble column capital restoration, including a complex dutchman repair to the volutes.

After photos of marble column capital restoration, including a complex dutchman repair to the volutes.

The goal was to restore rather than replace as much of the original structure as possible. First steps included removing said stairs and storing them offsite for reinstallation. The existing rubble foundation was then replaced with steel-reinforced concrete footings and elevated slabs. Repair work on the façade masonry began by cleaning the limestone and marble, which was done using a specially designed low-pressure misting system that carefully lifts contaminants without destabilizing the materials.

The ceilings within the front temple portico before and after intense plaster restoration and refinishing.

The ceilings within the front temple portico before and after intense plaster restoration and refinishing.

Repairs were made using a dutchman technique, which, Moore explains, is used when an area of stone is missing or deteriorated beyond the point of patching. The type of stone is identified and matched with new stone. In this case, the marble had a distinctive grain, and new dutchman pieces were arranged such that the grain would align with the existing material. The damaged section of stone was removed and the surface cut into a flat, uniform opening. The new stones are rough-cut, and then ground and honed by hand until the fit is within 1/64 of an inch, at which point it is secured in place using stone epoxies and stainless steel anchors. “This incredible precision was carried throughout the courthouse to ensure the original design was done justice,” Moore notes.

John Canning Co. performed the work there.

John Canning Co. performed the work there.

“The trickiest parts of the project were replicating the marble volutes of the column capitals, and making the center-pivot windows functional again. The marble volutes had to be laser scanned and perfectly reproduced to match the original, and then fit seamlessly into the existing material,” he explains, noting that each volute weighed several hundred pounds and had to be lifted delicately into place. “The center-pivoting window sashes have complex weather stripping and jambs. Site superintendent Pete Hansen remarked, ‘There’s a reason they don’t make them anymore.’”

Several original bronze exterior doors had been replaced in years past.

Several original bronze exterior doors had been replaced in years past.

Both entries featured large-scale doors and light fixtures. Grand Light was subcontracted to refinish the eight-foot entry door on the Elm Street elevation and to replicate the original Church Street doors, which had been lost when they were removed and replaced with standard emergency exit doors. The company was also asked to bring the 400-pound lanterns flanking the doors back to their original finish.

New doors were perfectly reproduced in bronze to match an existing original pair.

New doors were perfectly reproduced in bronze to match an existing original pair.

All of the windows were removed, lead abated, restored, reglazed (triple-paned windows replaced the original single-pane units), and reinstalled into the existing wood frames. To make accurate repairs to damaged frames, samples of the original wood were sent to the National Forest Service for species identification; they were shown to be oak, mahogany, and ash. Additionally, multiple stained-glass windows on the second floor were dismantled and reassembled, replacing all the zinc cames in the process.

Close-up of finished door.

Close-up of finished door.

To ward off nesting birds and to protect sculptures by John Massey Rhind, permanent netting was installed across the tympanum located above the main entrance. The front entry roof and gutters were replaced, new roof drains and piping were installed, and the original three flights of granite stair treads—with new concrete footings and reinforced concrete walls—were put back in place.

Original treads were saved and reinstalled at completion.

Original treads were saved and reinstalled at completion.

The NHCC project is remarkable for the old-world craftsmanship—stone carving, wood repair, metal fabrication, stained glass work, and decorative plastering required to restore a building of such historic grandeur. “Every building is different,” Moore concludes, “and although many techniques can be universally applied, understanding the context of [this project was] paramount. This is certainly one of New Haven’s most beautiful structures.”

The interiors are slated for restoration in a future phase.

New Haven Courthouse steps

The front monumental stairs required complete demolition and new footings.

Key Suppliers

Architectural Stone Quarra Stone Company LLC

Door Hardware Builders Hardware

Jahn Patch Cathedral Stone

Pointing Mortar Edison Coatings

Stone Cleaners and Consolidants Prosoco

Silicate Paint Alvine Engineering

Masonry Tools and Applicators Hilti
